Optima MAX-TL
L’ultracentrifugeuse de paillasse : rapide, silencieuse, efficace.
L'Optima™ MAX Series est conçu pour de petits volumes à grande vitesse, une alternative idéale à l'ultracentrifugation préparative. L'Optima MAX-TL est ainsi la digne héritière d'une longue tradition qui a débuté il y a plus de 25 ans avec la première ultracentrifugeuse de paillasse de Beckman, la TL-100. Pour l'Optima MAX-TL existe différents types de rotors pour des applications diverses.La commande se trouve sur un écran couleur LCD de taille décente.
Resources + Tools
Fonctionnalités
Les paramètres essentiels
- Vitesse maximum: 120 000rpm
- Accélération maximum : 657 000 x g
- Volume des échantillons : 175 µL à plus de 40 mL
- Volume sonore: < 47 dBA
- Système frigorifique sans CFC ni HFC pour des températures comprises entre 0°C et 40°C
- L'Optima MAX-TL dispose d'une grande variété de rotors, qui va des rotors oscillants aux rotors spéciaux en passant par les rotors à angle fixe et les rotors verticaux.
Conception "biosafe" pour une sécurité biologique optimale
- Notre conception "biosafe" englobe dans son intégralité les 3 niveaux de sécurité biologique : la centrifugeuse - les rotors - les tubes
- Les rotors sont munis de systèmes de verrouillage spéciaux (par ex. le couvercle à double verrouillage),
- Matériel de laboratoire spécialement conçu pour la biosécurité, comme les couvercles
- Utilisation de filtres HEPA intégrés aux centrifugeuses.
- Grâce à cette conception "biosafe", Beckman Coulter fait bénéficier l’utilisateur de centrifugeuses d’une sécurité maximale pour la manipulation des substances dangereuses au moment de la centrifugation. Conformément à la norme DIN EN 61010-2-020, tous les produits munis du label "Biosécurité" ont été testés par une agence externe.
Les applications importantes de l'Optima MAX-TL
- Protéines et lipoprotéines : culottage, purification, séparation en gradient de densité ou précipitations au PEG
- Virus : culottage, séparation en gradient de densité ou précipitations au PEG
- Acides nucléiques : culottage des précipitations sous forme d’hydroxydes, minipreps, fractionnement
- Nanoparticules : culottage ou centrifugation en gradients de densité des différentes fractions, comme par ex. les particules d’or, les protéines, les nanotubes de carbone et autres éléments.
- Pour toutes autres questions concernant les applications, nos collaborateurs sont à votre entière disposition pour répondre à vos demandes complémentaires.
Explore Optima MAX-TL Models
Related Parts for Optima MAX-TL
A-100/18 Fixed-Angle Rotor, 6 x 175 µL, 95,000 rpm, 149,000 x g
A-100/18 Rotor is a fixed-angle rotor for use in Beckman Coulter Airfuge Air-Driven Micro-Ultracentrifuges, made of aluminum and anodized silver. Major applications: Fast pelleting of very small samples.
A-95 Fixed-Angle Rotor, 4 x 450 µL, 95,000 rpm, 178,000 x g
The A-95 Rotor is a fixed-angle rotor for use in Beckman Coulter Airfuge Air-Driven Micro-Ultracentrifuges. Major applications: Fast pelleting of very small samples.
A-100/30 Fixed-Angle Rotor, 6 x 240 µL, 92,000 rpm, 167,000 x g
A-100/30 Rotor is a fixed-angle rotor for use in Beckman Coulter Airfuge Air-Driven Micro-Ultracentrifuges. Major applications: Fast pelleting of very small samples.
ACR-90 Chylomicron Rotor, 3.5 mL, 90,000 rpm, 122,000 x g
The ACR-90 Chylomicron Rotor is a specialty rotor for use in Beckman Coulter Airfuge Air-Driven Micro-Ultracentrifuges. Major applications: Rapid clarification of lipemic blood samples. Consists of a supporting base, a disposable polyethylene liner, a stainless steel lid, adapters for 2.4 mL liners, and rotor stand/vise.
Aluminum Batch Rotor 7 mL, 90,000 rpm, 132,000 x g
Batch rotor, aluminum, for 2 mL to 7 mL volumes. For use in Beckman Coulter Airfuge Air-Driven Micro-Ultracentrifuges. Sample is placed in the rotor body istelf or in one of two types of polyethylene liners. A plastic window disk is placed between the rotor and the lid to contain samples during centrifugation. Major applications: Rapid processing of fruit paste. Includes rotor stand/vise, o-ring, and bushing.
EM-90 Electron Microscopy Rotor
EM-90 Electron Microscopy Particle Counting Rotor, Silver Major applications: Sedimenting particles onto filter membranes, glass cover slides, and micropscope grids. For use in Airfuge; Air-Driven Micro-Ultracentrifuges. Includes: 5 mm Sector Core with 600; L capacity (100L per cell) (Part Number 347836), 3 mm Sector Core with 360; L capacity (60; L per cell) (Part Number 347838) Rotor Stand/Vise (Part Number 341252) Rotor Gaskets (Part Number 347840) Sector Core Removal Bolt Template; O-Ring (Part Number 853156) Bushing (Part Number 343197)

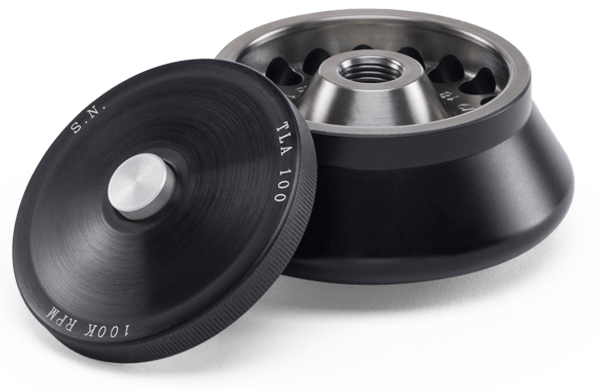

TLA-100 Fixed-Angle Rotor Package
The TLA-100 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 20 tubes.
TLA-100 Fixed-Angle Rotor
The TLA-100 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 20 tubes.
TLA-100.3 Fixed-Angle Rotor Package
The TLA-100.3 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 6 tubes.
TLA-100.3 Fixed-Angle Rotor
The TLA-100.3 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 6 tubes.
TLA-110 Fixed-Angle Rotor, 110.000 rpm, 657.000 x g, 8 x 5.1 mL
TLA-110 Rotor Package, Fixed Angle Rotor (28 deg Angle), Titanium.
Major applications: Moderate volume differential sedimentation (pelleting) of subcellular organelles and viruses.
For use in the Optima™ MAX-XP Benchtop Ultracentrifuge, Optima™ TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
Note: May also be used in TL-100 with service installed spindle upgrade Part Number 360477.
TLA-120.1 Fixed-Angle Rotor Package
Major applications: Pelleting of subcellular fractions in 5-30 minutes; plasmid DNA separation in 3 hours. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL personal micro-ultracentrifuges.
TLA-120.1 Fixed-Angle Rotor
The TLA-120.1 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 14 tubes.
TLA-120.1 Fixed-Angle Rotor
The TLA-120.1 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 14 tubes.

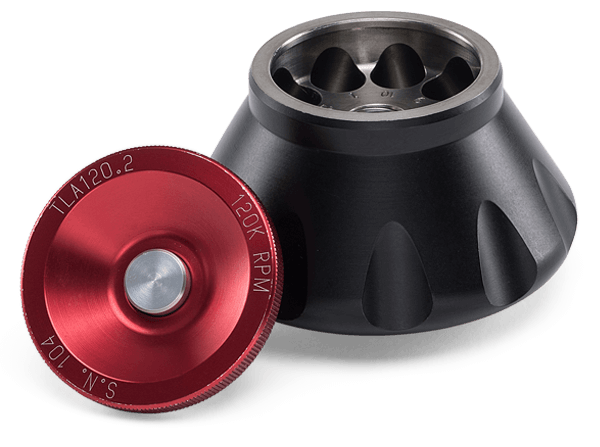

TLA-120.2 Fixed-Angle Rotor Package
The TLA-120.2 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 10 tubes.
TLA-120.2 Fixed-Angle Rotor Package
The TLA-120.2 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 10 tubes.
