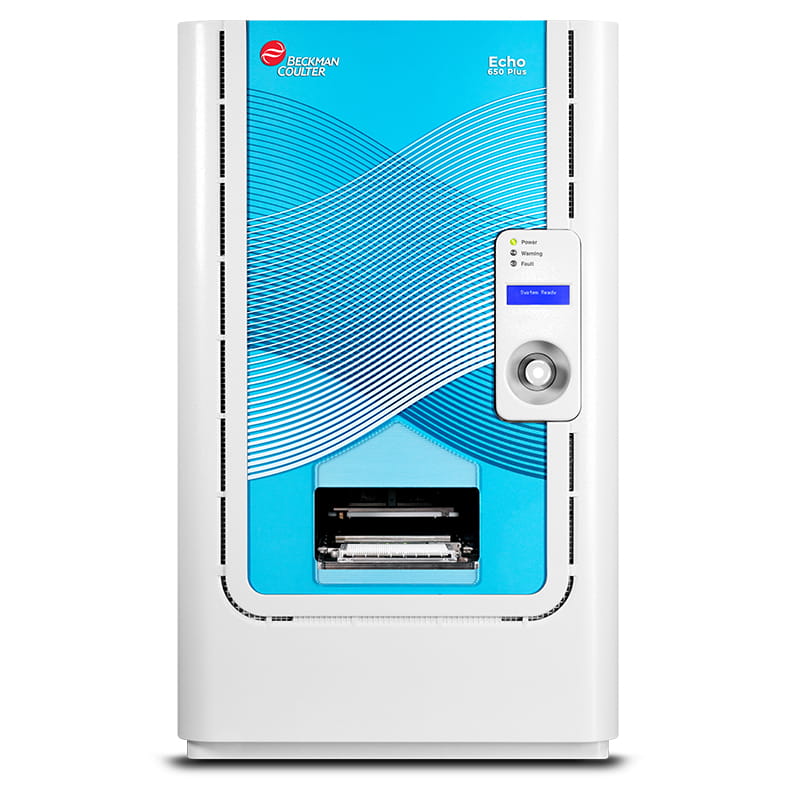

Echo 650 Plus Acoustic Liquid Handler
Product No:D01746
The Echo 650 Plus model is designed for medium-throughput, contact-free acoustic transfer of liquid samples and reagents from Echo Qualified microplates. It can be upgraded to the Echo 650T Plus model, which is compatible with acoustic sample tubes*.
*Sold by Azenta Life Sciences
Resources + Tools
Spécifications
| Acoustic Tube Readiness | Upgradable |
| Compatible Destination Labware | Most ANSI/SLAS-compliant microplates < 16 mm in height. Non-compliant labware (e.g. microscope slides) may be supported with a customer-supplied labware holder. |
| Compatible Liquid Types | Simple buffers (e.g. PBS), cell culture media, aqueous solutions containing DNA (sheared DNA, cDNA, plasmids, gene fragments), RNA (mRNA, gRNA, sgRNA), proteins (enzymes, antibodies), RNPs, serum, plasma, aqueous reagents and solutions containing surfactants, primers/probes, up to 50% glycerol solutions, 70-100% DMSO, crystallography reagents (MPD, PEGs, osmotic solutions), alcohol solutions. |
| Compatible Source Labware | Echo Qualified 384-well Low Dead Volume (384LDV) Source Microplates, Echo Qualified 384-well Polypropylene (384PP) Source Microplates, Echo Qualified 1,536-well Low Dead Volume (1536LDV) Source Microplates |
| Drop Transfer Resolution | 2.5 nL |
| Liquid Class Calibration | Not needed |
| Technology | Acoustic Droplet Ejection (ADE), Dynamic Fluid Analysis 2 (DFA2), Next Generation Transducer |
| Vacuum Requirements | Option 1: House supply. Minimum 200 Torr (266 mbar, 22 in Hg Vac), minimum pumping speed 8.0 m3/hr | Option 2: Standalone vacuum with surge tank (10 L). 100 Torr (133 mbar, 26 in Hg Vac), minimum pumping speed 2.0 m3/hr |
| Color | White with blue acrylic panel accents |
| Platform | Echo 600 Series |
| Installation Category | Category II |
| Power Requirements | 100–230 VAC, 5 A, 50/60 Hz |
| Client PC Operating System | Windows® 11 |
| Software | Echo Client Utility (Included) , Optional Echo Software Applications 1.8.X : Echo Plate Reformat, Echo Cherry Pick, Echo Dose-Response, Echo Combination Screen, Echo Plate Audit, Echo Array Maker |
| Operating Mode(s) | Standalone or integrated with other automation platforms, including the Access Laboratory Workstation |
| Material(s) | Aluminum Chassis, ABS Cover, Acrylic Panels |
| Finish | Textured |
| Weight | 117 kg (258 lbs) |
| Width | 53.8 cm (21.2 in) |
| Depth | 74.6 cm (29.3 in) |
| Height | 91.5 cm (36.0 in) |
| Package Quantity | 1 |
| Humidity Restrictions | 10–80% (non-condensing) |
